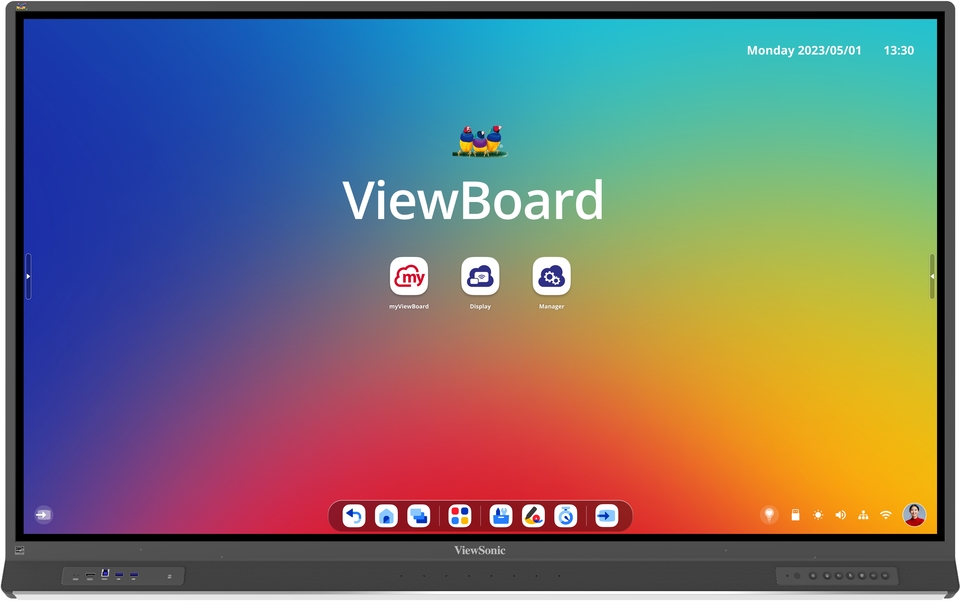

ViewSonic 53 reeks 86"

DISPLAY

Paneelgrootte:

86"

Paneeltype:

TFT LCD Module with DLED Backlight

Weergavegebied (mm):

1895.04 (H) x 1065.96 (V) (86.5" diagonal)

Aspectratio:

16:9

Resolutie:

UHD 3840x2160(Pixels)

Colors:

1.07B colors

Helderheid:

450 nits (typ)

Contrastverhouding:

1200:1(Typ.)

5000:1(Min. with DCR enabled)

Reactietijd:

8 ms

Kijkhoeken:

H = 178, V = 178 typ.

Levensduur achtergrondverlichting:

50,000 hrs (typ).

Oppervlakte behandeling:

Hardness: 7H. Anti-glare coating

Oriëntatie:

Landscape

PLATFORM

Processor:

Octa-Core CPU (A73*4 + A53*4)

RAM:

8GB (Physical RAM) + 8GB (Virtual RAM) *

Opslag:

128GB

TOUCH

Type:

UFT (Ultra Fine Touch) Technology

Touch resolutie:

32767 x 32767

Touch punt:

Windows: 40 points touch, Android: 20 points touch

INPUT

HDMI:

x4 (Frontx1:HDMI2.1 with CEC ; Rearx3:(HDMI2.1 with CEC)x2 & (HDMI2.1 with CEC, ARC)x1

RGB/VGA:

x1

DisplayPort:

x1

Audio:

x1 (PC audio in)

RS232:

x1

OPS:

module slot x 1

OUTPUT

HDMI:

x1

Audio:

x1 (Earphone out)

SPDIF:

x1

LAN

RJ45:

x2

USB

Type A:

USB3.0x4 (Frontx2 ; Rearx2)

USB2.0x1 (Rear)

Type B:

USB3.0x3 (Frontx1; Rearx2)

Type C:

Input:x3 (Frontx1 with USB3.0, DP1.2, Ethernet 100M, PD 100W; Rearx1 with USB3.0, DP1.2, Ethernet 100M, PD 65W; Rearx1 with USB3.0, PD 15W)

Output:x1, DP

SPEAKERS

16W x 2 front soundbar + 20W x 1 subwoofer

MICROPHONE

built-in 8-array microphone

TOP CAMERA PLATE

Yes

INGESLOTEN BESTURINGSSYSTEEM

Android 14

BUNDELSOFTWARE

Basis annotatiesoftware:

myViewBoard for Android

Pro annotatiesoftware:

myViewBoard for Windows (embedded in VPC)

Draadloze presentatie:

Display, vCast

Device Management:

Manager

ViewSonic Launcher:

Yes

SPECIALE EIGENSCHAPPEN

All-in-one USB port:

USB3.0 “SmartPort USB” to all channels.

Eenvoudig delen via LAN tussen IFP en slot-in-apparaat:

10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000)

Light Sensor:

Yes

NFC Reader:

Yes

Pen Sensor:

Yes

STROOM

Spanning:

100-240VAC +/- 10% Wide Range

Consumptie:

On:131.53W / Off: <0.5W

ERGONOMICS

Wandmontage (VESA®):

800 x 600

OPERATING CONDITIONS

Temperatuur (º C):

0°C to 40°C

Luchtvochtigheid:

20% ~ 80% RH non-condensing

AFMETINGEN (B X H X D)

Fysiek (inch/mm):

76.87 x 47.13 x 4.66 in / 1952.4 x 1197.2 x 118.4 mm

Verpakking (inch / mm):

85.04 x 51.17 x 8.86 in / 2160 x 1310 x 225 mm

WEIGHT

Netto (lb / kg):

139.66 lb / 63.35 kg

Bruto ( lb/kg):

179.01 lb / 81.2 kg

REGULATIONS

DOE EPEAT, DOE Energy Star, CE EMC, LVD or CB, RoHS Green BOM & RoHS DoC, ErP (2009/125/EC), REACH SVHC List & DoC, EEL, , WEEE, BSMI, Green Mark

VERPAKKINGSINHOUD

1. 3m power cord by ship area

2. Type C cable 1.8m(USB-IF certified)

3. Remote control with AAA battery

(new VS remote control)

4. 3m touch USB cable(USB 2.0)

5. Touch pen x 2 (VB-PEN-002)

6. Quick Start Guide

7. RS232 adapter

8. Clamp x 5

9. Camera Plate

10. Screw x 8 (camera 2+2, wall mount 4)

11. HDMI cable 3m(HDMI LA certified)

12. AAA Battery x 2

13. Compliance statement

COMPATIBLE SLOT-IN PC

VPCF5-W33-G1

VPC37-W53-G1

VPC35-W53-G1

VPC-A31-O1
